The chain stoppers are welded on the forward deck, used for stopping the anchor chain and bearing the chain load, not transmit to the cable lifter.
Our chain stoppers comply OCIMF guidance and IMO relosution MSC for single point mooring system and emergency towing system applications, all chain stoppers are manufactured from high quality steel.
Qingdao Seakong Marine Machinery Co.,Ltd offer a large wide range of chain stoppers such as
Roller Type Chain Stopper,
ETA-SPM Chain Stopper,
Tongue Type Chain Stopper,
Ratched Chain Stopper etc.
Chain Stopper ( for Single Point Mooring & Emergency Towing System )
MAIN FEATURES
· Compliance with IMO Resolution MSC 35(63), OCIMF Recommendations Fourth Edition May 2007
· Designed for breaking load of chain
· 100ton,200ton, 350ton are type approved by DNV, ABS,LR,BV
· 2.0 times of Safety Factor ( MBL:SWL=2:1 )
· Basement is manufactured from High Quality Hull Plate
· Weld Down Base
· Grease lubricated bronze bearings
· Primer finished
OPTIONAL FEATURES
· Be designed for very low temperature
· Bolted down foundation
· Curved Plate on request
· Hydraulic/ pneumatic operation
· Fatigue analysis
· Proof load test
· Paint on your request
· IACS Cert ( DNV, LR, ABS,BV,RMRS, RINA etc )

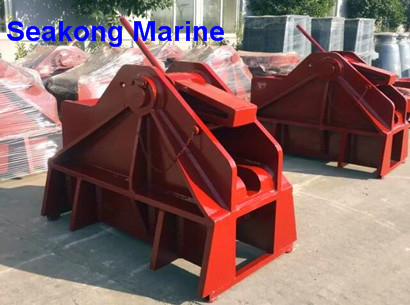

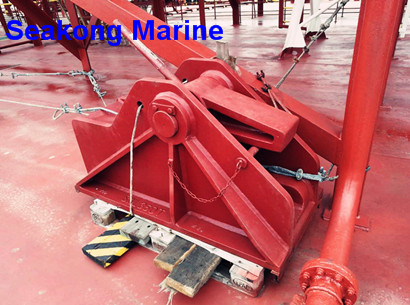

PRODUCT PICTURE

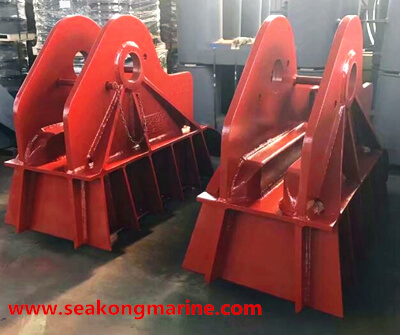

2 PCS SWL350T Bow Chain Stopper with LR Cert
