						   Product Details

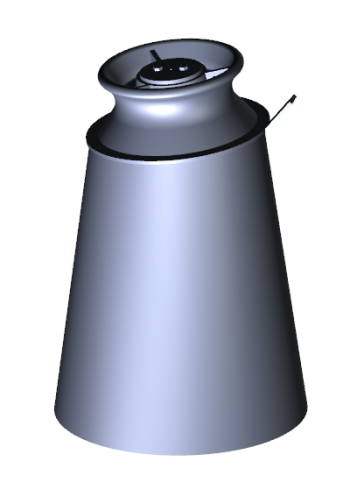

    Pedestal Fairleads

Qingdao Seakong Marine Machinery Co., Ltd supplies the following pedestal fairleads.



STANDARD FEATURES

• Standard: JISF2014-87, VIS38 Type, DIN81907,ISO13776

• Size: 100mm~500mm

• Designed for breaking strength of wire with 180° wrap on roller

• Fitted with grease lubricated bronze bearings

• Suitable hardness on roller to ensure long-time life

• High strength roller pin for sufficient load capacity

• Epoxy Primer Coating

OPTIONAL FEATURES

• Stainless Steel Guide Roller for low tempreture usage on request

• Customized Mounting Base

• IACS certs












			Download Pedestal Fairleads ISO13776

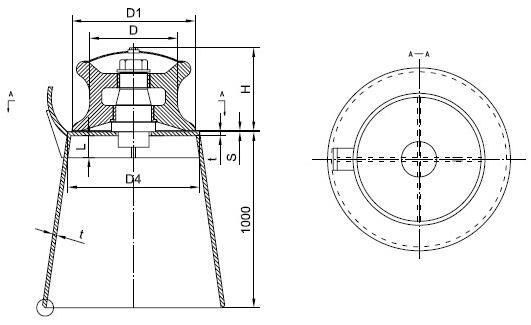

JISF2014-87 Pedestal Roller

jisf2014-87 pedestal roller















			Dia. Of Roller
			Appropriate cable dia.
			Dimensions(mm)
			Weight(Kg)




			6x24
			6x37
			Hemp Rope
			Synthetic Fiber Rope
			D1
			D4
			H
			H1
			L
			S
			t
			t1
			Roller
			Stand




			100
			11
			11
			40
			28
			160
			176
			128
			35
			60
			3
			8
			6
			9.9
			63.9




			150
			16~18
			14~16
			45
			32
			240
			264
			211
			40
			75
			3
			12
			8
			33.8
			129




			200
			22
			20
			55
			40
			310
			338
			251
			50
			85
			3
			14
			10
			68
			178




			250
			24
			24
			65
			45
			380
			408
			298
			60
			100
			4
			14
			10
			114
			207




			300
			30
			28
			70
			50
			440
			472
			321
			60
			100
			4
			16
			14
			168
			265.4




			350
			38
			34
			75
			55
			500
			536
			346
			65
			100
			4
			18
			14
			248
			332




			400
			40~42
			38~40
			85
			65
			560
			600
			371
			70
			100
			5
			20
			16
			355
			401.3




			450
			44
			42~44
			/
			80
			620
			660
			39
			90
			120
			5
			20
			16
			452
			445.4















    DIN81907 Pedestal Roller

DIN82607 pedestal fairleads





			Type
			H
			TUBE (DxS)
			Weight (kg)




			 3
			200
			355.6x12.5
			68




			3
			400
			355.6x12.5
			89




			3
			600
			355.6x12.5
			111




			3
			800
			355.6x12.5
			132




			5
			200
			457.2x12.5
			117




			5
			400
			457.2x12.5
			144




			5
			600
			457.2x12.5
			172




			5
			800
			457.2x12.5
			199




			8
			200
			558.8x12.5
			209




			8
			400
			558.8x12.5
			242




			8
			600
			558.8x12.5
			276




			8
			800
			558.8x12.5
			310




			12
			200
			660.4x14.2
			325




			12
			400
			660.4x14.2
			370




			12
			600
			660.4x14.2
			415




			12
			800
			660.4x14.2
			460




			20
			200
			660.4x17.5
			460




			20
			400
			660.4x17.5
			516




			20
			600
			660.4x17.5
			571




			32
			200
			812.8x16
			748




			 32
			400
			812.8x16
			810




			32
			600
			812.8x16
			873
