Marine Chocks
Qingdao Seakong Marine Machinery Co., Ltd supplies a large wide of marine chocks.
STANDARD FEATURES
• Standard: ISO13729,ISO13728,ISO13713,DIN81915,NS2587&2588&2589&2590,JISF2017&2005,2007, Gost Standard
• Size: Max. SWL500T
• Usage: for mooring, towing and emergency towing
• Opening Shape:  Oval, Circular, Triangle
• Smooth Surface and Suitable Hardness on surface to reduce wear and tear on mooring line
• Manufactured by Electric Furnace which means less impurities in casting than by Intermediate Frequency Furnace
• Casted from high quality industry steel not life waste
• Needful heat treatment to prevent Internal Stress Concentration
• Epoxy Primer Coating
OPTIONAL FEATURES
• Manufactured from Special Material for -25 ℃ / -40 ℃ / -50 ℃ / -60 ℃ low tempreture usage
• Can be welded with strong base
• Can be fitted with watertight cover to suit for special position on hull
• Can be open type
• Stainless Steel Chocks are available
• Paint to your specifications
• IACS Cert

Download Bulwark Mounted Panama Chocks DIN81915 Type A

Download Deck Mounted Panama Chocks DIN81915 Type C

Download Bulwark Mounted Chocks NS2589

Download Deck Mounted Closed Chocks ISO13729

Download Bulwark Mounted Closed Chocks ISO13729

Download Closed Chocks JIS F2005

Download Single Point Mooring Pipes JIS F2030

Download Deck Mounted Panama Chocks EU Type

Download Deck Mounted Chocks EU Type SWL102T & SWL204T Class Approved

Download ASTM A27-70-36 Cast Steel Chocks

Download Enlarged Towing Fairlead SWL200T

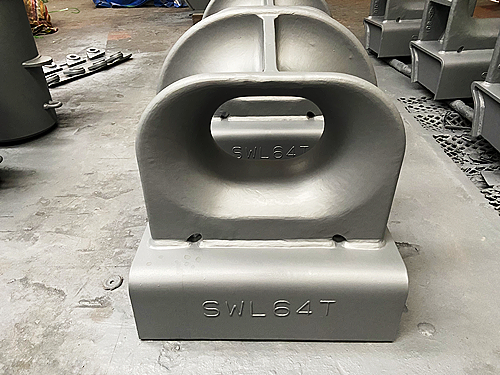

                       Deck Mounted Chock SWL120T with seat                                                                        Deck Mounted Chock SWL64T with seat

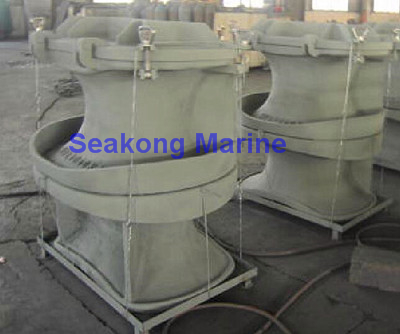

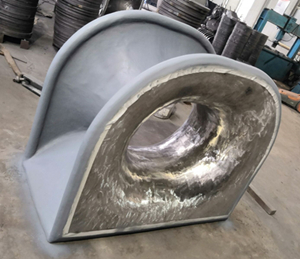

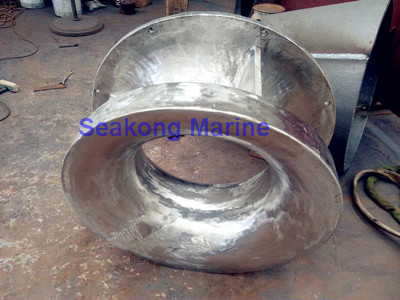

Panama Chock with stainless steel protection               Stainless Steel AISI316 Chock with circular opening          Panama Chocks with watertight hatch

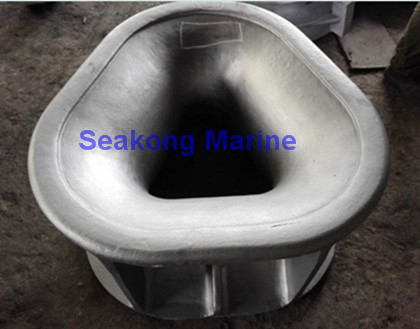

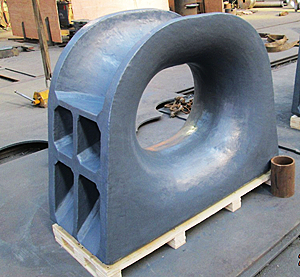

Stainless Steel Triangle Chock                                        SWL350T Deck Mounted Fairleads                                  Panama Chock with watertight hatch


Panama Chock with stainless steel SS316 protection
