Product Details

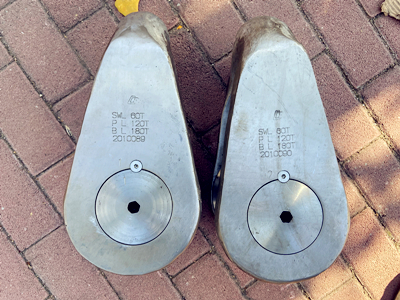

Mandal Fairlead Shackle

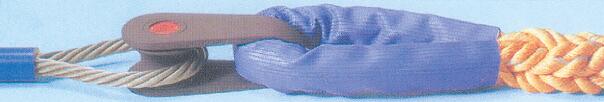

The Mandal Fairlead Shackles are used as mooring shackle with sleek designed to pass through fairlead,they are connected between wire rope and fibre forerunner.
Our Mandal Fairlead Shackles are manufactured from high quality stainless steel and 100% proof load tested.
We offer from MBL90T to MBL180T
MAIN FEATURES
· Manufactured from high quality stainless steel
· SWL range: 30T,40T,45T,55T,60T, MBL range: 90T,120T,140T,165T,180T
· 100% proof load tested
· 3.1 material cert
OPTIONAL FEATURES
· Manufacture from H.D.G high strength alloy steel
· breaking load on request
· 3rd party inspection on request ( CCS,BV,ABS,LR,DNV,RINA )
The Mandal Fairlead Shackles are used as mooring shackle with sleek designed to pass through fairlead,they are connected between wire rope and fibre forerunner.
Our Mandal Fairlead Shackles are manufactured from high quality stainless steel and 100% proof load tested.
We offer from MBL90T to MBL180T
MAIN FEATURES
· Manufactured from high quality stainless steel
· SWL range: 30T,40T,45T,55T,60T, MBL range: 90T,120T,140T,165T,180T
· 100% proof load tested
· 3.1 material cert
OPTIONAL FEATURES
· Manufacture from H.D.G high strength alloy steel
· breaking load on request
· 3rd party inspection on request ( CCS,BV,ABS,LR,DNV,RINA )
 |
Download Mandal Fairlead Shackle Catalogue |
| SWL(ton) | d | d1 | D1 | b | D | H | R | Proof Load(ton) | Breaking Load(ton) |
| 30 | 60 | 60 | 120 | 66 | 122 | 295 | 38 | 60 | 90 |
| 40 | 72 | 65 | 120 | 90 | 130 | 325 | 50 | 80 | 120 |
| 45 | 80 | 70 | 150 | 120 | 150 | 340 | 65 | 90 | 140 |
| 55 | 85 | 75 | 155 | 120 | 160 | 360 | 65 | 110 | 165 |
| 60 | 90 | 80 | 170 | 125 | 180 | 390 | 68 | 120 | 180 |
