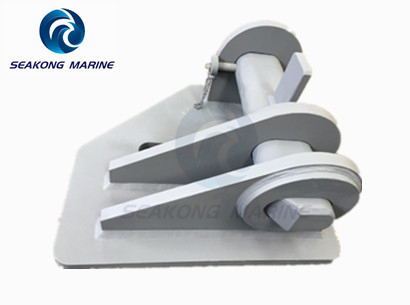

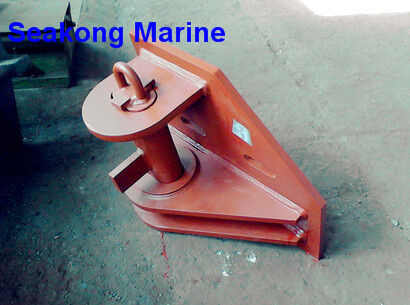

Smit Brackets

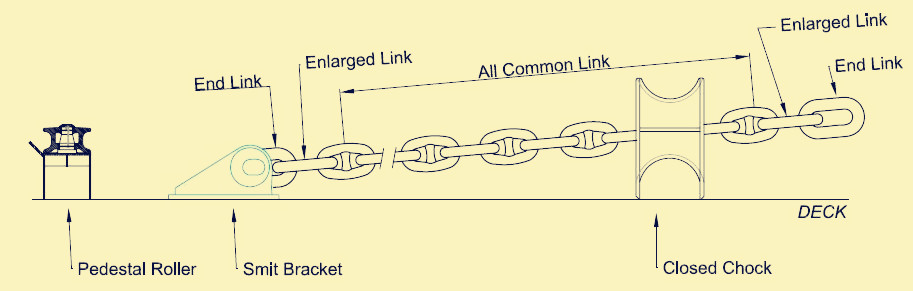

The simt brackets (also known as Towing Brackets or Mooring Brackets) are welded on the aftdeck, connected with end link or pear shape link of chafe chain for towing purposes.
We select finest quality material to manufacture towing brackets which can work to 500T SWL max. and suit to chain dia. up to 132mm.
We have developed towing brackets for -40℃ & -60 ℃ working working temperature, manufacture by using high strength low alloy structural steel.
Our all welding works are done by ABS qualified welders and all welding procedure is in accordance to DNV&ABS approved WPS.
All weld joints are inspected by level III NDT engineer
Our towing brackets can be supplied with class cert such as ABS, BV, DNV, LR, CCS,RMRS,RINA.
Underdeck stiffening is on request.

STANDARD FEATURES
• Standard: OCIMF,JISF2029
• Size: Max. SWL500T
• Usage: for towing and emergency towing
• Designed for grade 3 chafe chain
• MBL/SWL=2:1
• High strength forging alloy steel pin, high garde base
• SWL100T, SWL200T are type approved by ABS/BV
• Epoxy Primer Coating
OPTIONAL FEATURES
• Can be designed for R3,ORQ or R4 mooring chains
• Can be designed for -40℃ and -60℃ working temperature
• Paint on your request
• IACS cert

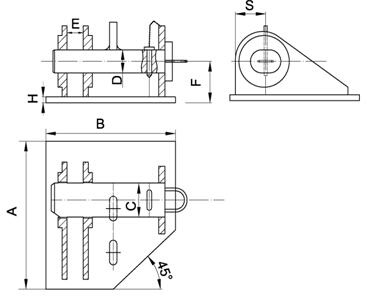

Nominal Dia. (mm)	A	B	C	D	E	F	S	H	SWL (KN)	MBL (KN)	Weight (Kg)
40	415	370	88	58	60	116	85	16	500	1000	58
44	420	370	90	58	60	118	85	18	550	1100	76
48	495	465	100	60	70	140	90	20	600	1200	94
52	535	485	110	70	80	150	100	20	750	1500	106
54	555	500	118	78	80	160	110	25	1000	2000	118
60	600	535	124	84	85	175	120	25	1250	2500	146
64	625	600	138	92	100	180	138	25	1500	3000	184
68	700	650	150	92	100	213	160	28	1740	3480	226
73	750	675	160	102	100	218	160	28	1850	3700	298
76	800	720	170	110	112	230	170	30	2000	4000	312
84	830	770	180	118	120	245	180	35	2250	4500	446
90	900	880	190	124	130	255	190	35	2500	5000	588
95	1120	940	195	135	170	290	195	40	2750	5500	751
102	1120	940	216	144	170	305	225	45	3000	6000	886
120	1180	1100	250	162	170	340	250	50	3500	7000	1180
132	1300	1170	276	182	180	380	275	55	4000	8000	1550

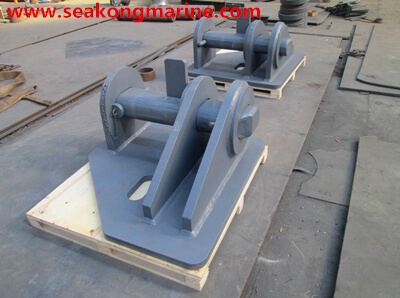

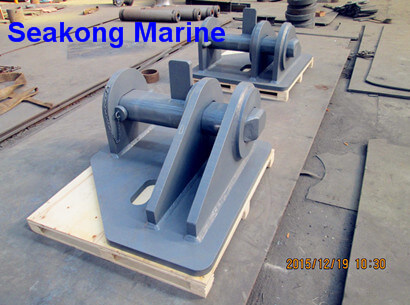

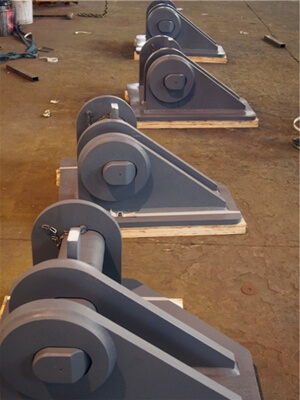

4 PCS SWL200T Ocimf Type Smit Brackets c/w DNV Certificates

2 PCS SWL350T Ocimf Type Smit Brackets c/w ABS Certificates
