Product Details
We supply high quality Anchors for mooring buoy system, such as Flippler HHP Delta Anchor,Danforth Anchor,MK5 Anchor etc.
Flipper Delta Anchor
|

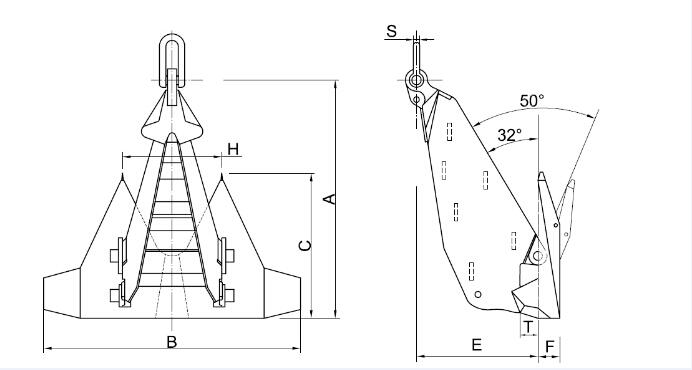

Nominal Weight (kg) |
Dimensions (in mm) | |||||
| A | B | C | D | E | F | |
| 300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
| 500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
| 1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
| 1080 | 1915 | 1350 | 1686 | 722 | 2200 | 62 |
| 2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
| 3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
| 4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
| 5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
| 7000 | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
| 7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
| 8000 | 3730 | 2900 | 3360 | 1420 | 4300 | 130 |
| 9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
| 10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
| 12000 | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
| 13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
| 15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
| 18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
| 20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
| 22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
| 25000 | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |

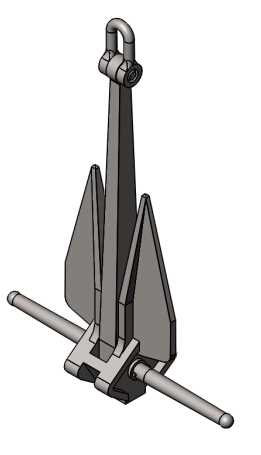

Danforth Anchor

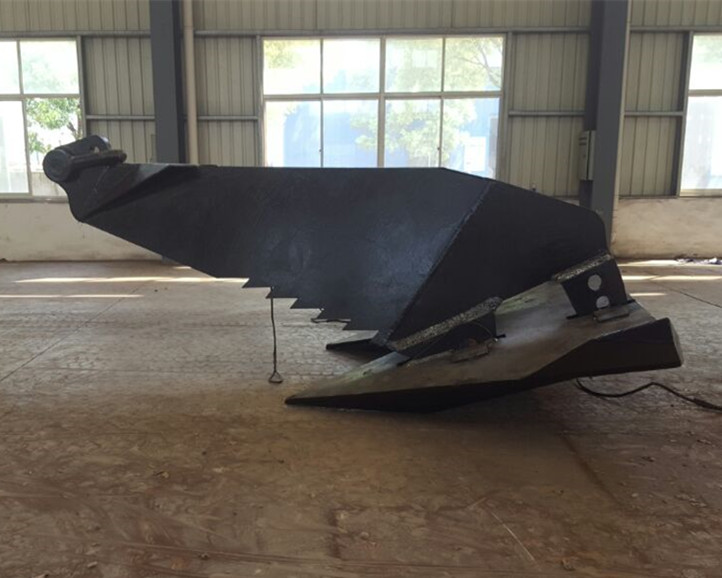

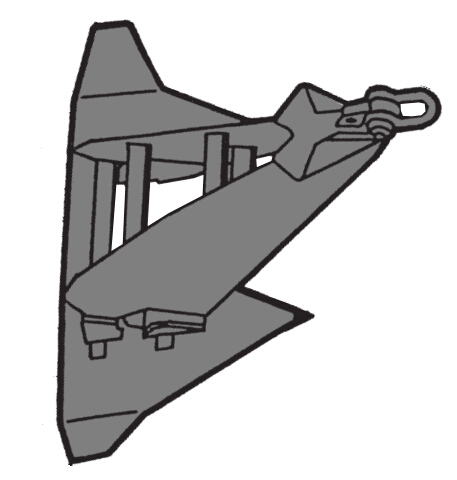

MK5 Anchor
Contact Us Now
Product Details
We supply high quality Anchors for mooring buoy system, such as Flippler HHP Delta Anchor,Danforth Anchor,MK5 Anchor etc.
Flipper Delta Anchor
|
Nominal Weight (kg) |
Dimensions (in mm) | |||||
| A | B | C | D | E | F | |
| 300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
| 500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
| 1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
| 1080 | 1915 | 1350 | 1686 | 722 | 2200 | 62 |
| 2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
| 3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
| 4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
| 5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
| 7000 | 3575 | 2860 | 3216 | 1361 | 4100 | 117 |
| 7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
| 8000 | 3730 | 2900 | 3360 | 1420 | 4300 | 130 |
| 9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
| 10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
| 12000 | 4490 | 3575 | 4030 | 1695 | 5320 | 145 |
| 13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
| 15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
| 18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
| 20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
| 22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
| 25000 | 5740 | 4590 | 5160 | 2165 | 6795 | 195 |
Danforth Anchor
MK5 Anchor
