Product Details
Pear Shackle
Made from heavy duty high strength forged steel, the Pear Shackles(also known as Pear Shape Anchor Connecting Link ) is a demountable type shackle used for connecting the link to the anchor shackle.
This type shackles are widely used in Chain Chasing Operation,Piggyback Mooring System or other mooring system.
Qingdao Seakong Marine Machinery Co.,Ltd supplies a wide range of Pear Shackles to variety of sizes. Note that our shackles are supplied subject to a nominal variation in weights and dimensions.
STANDARD FEATURES
· made from high strength forged steel,suitable for U3,ORQ,R3,R4 grade chain
· Size: No.3~No.11,for chain diameter 25mm to 108mm
· used in the marine industry or offshore industry
· stainless steel tapper pin
· supplied as ex-stock item
OPTIONAL FEATURES
· breaking load test on your requirement
· classification society 3rd party inspection
Made from heavy duty high strength forged steel, the Pear Shackles(also known as Pear Shape Anchor Connecting Link ) is a demountable type shackle used for connecting the link to the anchor shackle.
This type shackles are widely used in Chain Chasing Operation,Piggyback Mooring System or other mooring system.
Qingdao Seakong Marine Machinery Co.,Ltd supplies a wide range of Pear Shackles to variety of sizes. Note that our shackles are supplied subject to a nominal variation in weights and dimensions.
STANDARD FEATURES
· made from high strength forged steel,suitable for U3,ORQ,R3,R4 grade chain
· Size: No.3~No.11,for chain diameter 25mm to 108mm
· used in the marine industry or offshore industry
· stainless steel tapper pin
· supplied as ex-stock item
OPTIONAL FEATURES
· breaking load test on your requirement
· classification society 3rd party inspection

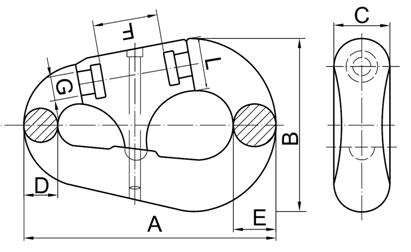

| No | Chain size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) |
Weight ( kg) |
| 4 | 32-34 | 298 | 206 | 59 | 40 | 48 | 83 | 40 x 44 | 56 | 26 | 43 | 13 |
| 5 | 42-51 | 378 | 260 | 76 | 51 | 64 | 100 | 51 x 60 | 74 | 32 | 52 | 27 |
| 6 | 52-60 | 454 | 313 | 92 | 60 | 76 | 121 | 62 x 73 | 88 | 37 | 64 | 49 |
| 7 | 62-79 | 562 | 376 | 117 | 79 | 95 | 149 | 85 x 79 | 111 | 48 | 76 | 94 |
| 8 | 81-92 | 654 | 419 | 133 | 92 | 124 | 149 | 111 x 102 | 130 x 133 | 54 | 79 | 149 |
| 9 | 94-95 | 692 | 435 | 146 | 98 | 130 | 159 | 124 x 137 | 141 | 57 | 83 | 236 |
| 10 | 97-102 | 889 | 571 | 190 | 121 | 165 | 190 | 130 | 181 | 73 | 108 | 386 |
